Thông tin nhanh về sản phẩm

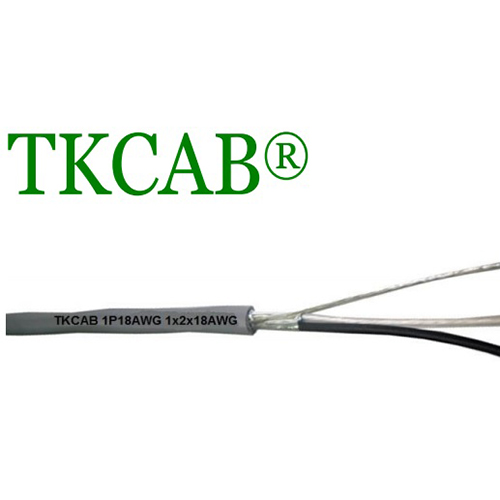

- Tên sản phẩm: Cáp tín hiệu AUDIO Control cable TKCAB 1P 18AWG
- Mã sản phẩm: IMATEK 1 pair
- Hãng sản xuất: IMATEK - Pháp
- Xuất xứ: Asia
- Conductor Flexible Class 5 Stranded Tinned Copper Conductor
- Insulation Polyethylene (PE) Compound twisted in pair
- Screening Aluminium foil Screening
- Drain Wire Tinned Copper Drain Wire
- Outlet Sheath Polyvinyl Chloride (PVC) Compound
- Color: Grey, RAL 7037
- Working Voltage 300/500V
- Test Voltage 1500V
- Rated Temperature --‐ 20OC – 75OC
- Insulation Resistance 10MΩ--‐ Km (min) @ 20OC DC 500V
- Dielectric Strength AC 500V/1 minute no breakdown
- Flexibility Test No cracking
- Flame Test Pass horizontal flame
- Dielectric Test 1.5 KV
- Flame Retardant In accordance to UL type FT4
- Standard & Approval ROHS
- UL Standard In accordance to UL 2092, UL 2095
- Minimum Bending Radius 8 x OD (static)
- Bảo hành: Chính hãng 1 năm
- Lắp đặt: Chưa bao gồm vật tư và chi phí lắp đặt
- Giao hàng: Miễn phí
- Xem thêm thông tin: www.namlong.vn
